Integrating with SonarQube Server

Before beginning, if your SonarQube Server instance is behind a firewall, please whitelist our IP addresses:

52.49.74.169
34.251.143.247
18.203.133.47



Your SonarQube Server instance must be accessible via DNS. Please ensure that you have assigned a public DNS record that is resolved to your instance, with an SSL certificate defined for the domain you configured.

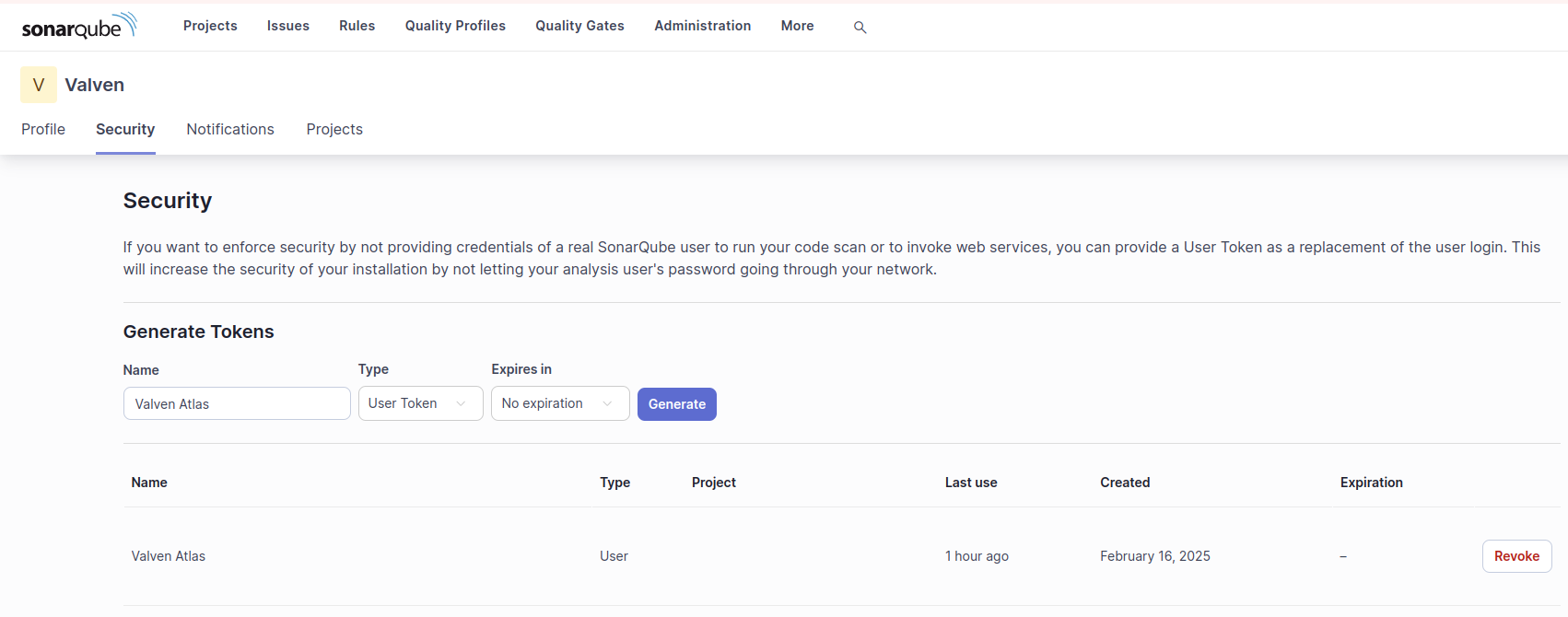

Step 1: Create a User Token on SonarQube Server.

• Sign in to your SonarQube Server
• Click on your profile and select the "Security" option.
• Name your token and then set your token to "No Expiration".
• User must be administrator and have “See source code” permission.

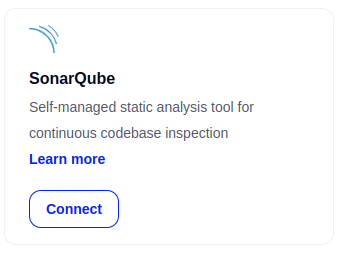

Step 2: On Valven, visit Connected Applications on sidebar. Find SonarQube Server under Code Quality Tools and click Connect.

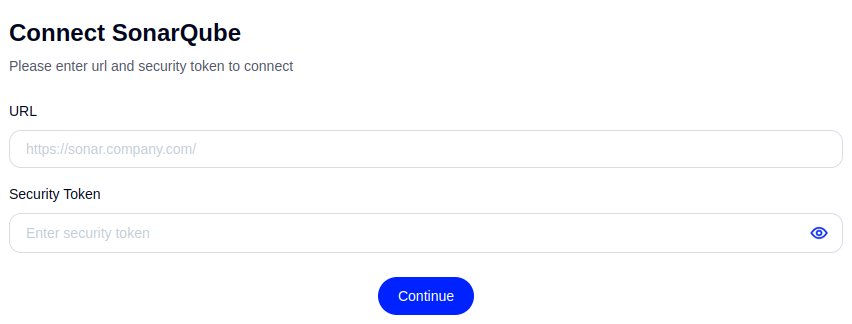

Step 3: Enter URL to SonarQube Server and User Token

Verifying the Connection

After completing the permission step, you should be redirected to the Valven Connected Apps.

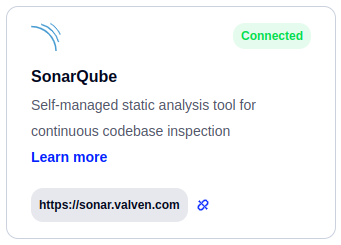

Being redirected to the Valven Connected Apps screen with the 'Connected' label at the top, the project name, and the disconnect icon in your SonarQube section indicates that Valven integration to your SonarQube Server is completed successfully.
